Led Lamp Beads 7W RA: 97 Color Temperature(CCT) 4000K
Product Features:
1. Low thermal resistance, low energy consumption, low malfuntion rate.
2. The csp lamp beads can be divided and not affect other parts.
3. Small size, with many available sizes to choose.
4. Wide irritation light angle, high brightness.
Product Parameter:
| Optical Parameter | Value | Panel Parameter | Value |
| Lamp Luminous Flux(lm) | 530lm | Series Parallel Relation | 2 parallel 7 Series |
| Color Temperature(CCT) | 4000K | Electric Current | 0.3A |
| CRI(Ra>) | 97 | Input Voltage(V) | 18~24V |
| Power | 6W | Thermal Conductivity | >2.0W/M.K |
| Lamp Luminous Efficiency(lm/w) | 901Lm/W | Material | A1 panel |
| Model Number: | LHM-2B7CD029-00740AA | Brand Name: | Lohua Light Source |
| Lamp bead model: | 1010030-3232-5X-40AA | Application: | Various lighting places |
| Warranty(Years): | 2 years | Place of Origin: | Shenzhen, Guangdong, China |
| CSP size(mm): | 32*32 | Name: | 7W downlight csp |
| viewing angel(°) | 150° | LED Light Source: | csp lamp bead |
| Luminous intensity: | 530lm | QTY of LED: | 14pcs |
| LED Type | 3232 | PCB Thickness | 1.0mm |
| Power Factor: | >0.95 | IP Rating: | 66 |
Our Service:
1. A professional sales team and full quality control system.
2. Our own lab and factory with good adaptability.
3. With professional sales team and technical experts.
4. We have patents in CSP, the quality is convinced.
Application Range:
It is widely applied in shopping malls, office buildings, hotels, exhibition halls, conference rooms, hospitals,windows, household etc.
Company Introduction:
Jiangsu Lohua New Material Co., LTD., founded in October 2013, located in National High and New Technology Industrial Development Zone of Nantong, is the first successful manufacturer of development and production of CSP products and fluorescent ceramic products in China. The company has always been based on the LED, a new generation of lighting and laser display technology, providing the overall solution of more high-quality light emitting materials and light source for the white light. It is a national high-tech enterprise of research, development, production, and sales of integration with sales team in Jiangsu, Guangdong, Sichuan Province and other places.
Product Tags:
|
|

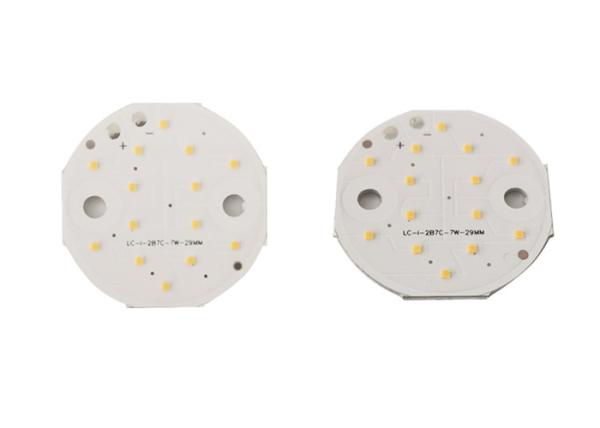

Small 0.3A 6W 4000K RA 97 530lm 14pcs Led CSP Lamp Bead Images
|
