Home > LED Lamp Beads >

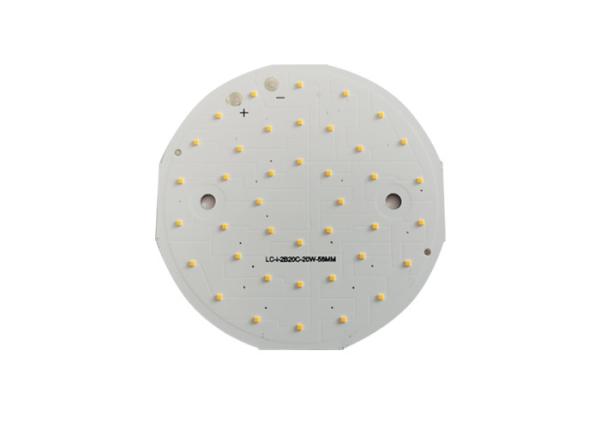

2828 Led Lamp Beads

Product Categories

Shenzhen Luohua Light Soure Co.,Ltd

Contact Now

Brand Name : Lohua

Model Number : LHM-2B20D058-02040AA

Place of Origin : China

MOQ : 1,000pcs

Price : $5-$10/pc

Payment Terms : T/T

Supply Ability : 200,000pcs

Delivery Time : 5 - 8 work days

Packaging Details : normal packaging

Lamp Luminous Flux(lm) : 1500lm

Power : 17W

CRI（Ra） : 97

Lamp Luminous Efficiency(lm/w) : 901lm/W

Series Parallel Relation : 2 parallel 20 Series

Electric Current : 0.3A

Input Voltage(V) : 55~65V

Material : A1 panel

Contact Now

Led Lamp Beads Downlight 20W RA: 97 Color Temperature(CCT) 4000K

1. The size unit in below picture is mm.

2. Pls avoid stressing the CPS lamp bead.

3. Pls take care of static electricity protection.

4. Pls keep the fluorophor away from some tools like tweezers.

Product Parameter:

Optical Parameter	Value	Panel Parameter	Value
Lamp Luminous Flux(lm)	1500lm	Series Parallel Relation	2 parallel 20 Series
Color Temperature(CCT)	4000K	Electric Current	0.3A
CRI(Ra>)	97	Input Voltage(V)	55~65V
Power	17W	Thermal Conductivity	>2.0W/M.K
Lamp Luminous Efficiency(lm/w)	901Lm/W	Material	A1 panel
Model Number:	LHM-2B20D058-02040AA	Brand Name:	Lohua Light Source
Lamp bead model:	0909030-2828-5X-40AA	Application:	Various lighting places
Warranty(Years):	2 years	Place of Origin:	Shenzhen, Guangdong, China
CSP size(mm):	28*28	Name:	9W downlight csp
viewing angel(°)	150°	LED Light Source:	csp lamp bead
Luminous intensity:	1500lm	QTY of LED:	40pcs
LED Type	2828	PCB Thickness	1.0mm
Power Factor:	>0.95	IP Rating:	66

Our Service:

1. A professional sales team and full quality control system.

2. Our own lab and factory with good adaptability.

3. With professional sales team and technical expert.

4. We have patents in CSP, the quality is convinced.

Product Tags:

1500lm rgb led chip
